Exploratory data analysis with Scheme, Gnuplot, and Tk
In my second post on this blog, I expressed an interest in learning how to build desktop applications. I have yet to pursue that interest. Instead, I've primarily continued developing Shiny apps deployed on the web (but see Shiny-Scorekeeper). Recently, though, I've spent some time learning about the Tk GUI toolkit for developing desktop applications. In this post, I revisit an old post using the dataframe and gnuplot-pipe libraries for Scheme to conduct simple exploratory data analysis (EDA) and add an interface with chez-tk.
Tcl/Tk
A few months ago I saw on Hacker News that Tcl/Tk accounced a major release. My interest was piqued by the generally favorable comments and comparisons to Lisp. I also like the generality that comes from the large number of languages that provide bindings to Tk. One of those languages is my primary programming language, R. It seems that the GUI options for R have largely collapsed to only Shiny and tcltk. To satisfy my curiousity, I tackled a little project to learn more about the tcltk package in R.
I was also interested in available bindings to Tk for my favorite programming language, Scheme, and found PS/Tk.
The PSTK library has had a long history in the Scheme community and, in one form or another, is available for many Scheme implementations. The current file includes its history starting from an implementation of Chicken/Tk by Wolf-Dieter Busch from 2004 based on earlier code by Sven Hartrumpf from 1997. Nils Holm made the library portable, and so created PSTK. Ken Dickey created an R6RS version.
PS/Tk communicates with Tcl/Tk through a process port. The versions of PS/Tk code that I found did not include R6RS compatibility so I added the code needed to open a process port in Chez Scheme, converted from R7RS to R6RS library, called it chez-tk, and submitted it to Akku. I've collected examples for using chez-tk based on existing PS/Tk examples or translating examples from TkDocs. In translating those examples, I was primarily using tkinter for Python to understand how they work. I was impressed by the autocompletion and documentation for tkinter available through VS Code. For tcltk and chez-tk, you have to learn the translation rules and use the Tcl/Tk documentation.
After working up a set of chez-tk examples, the only apparent bug that I found was related to the inclusion of parentheses in listbox choices. It was a small change in the code to fix that bug, and I didn't notice any negative impacts when running through the examples after making the change, but I also don't understand why that procedure was written that way in the first place. That's an uneasy feeling.
App Overview
When I first started making Shiny apps 10+ years ago, I was drawn to the potential to make my work in R accessible to non-R users. I didn't anticipate the extent to which I would find graphical user interfaces to multi-dimensional datasets useful for my own data exploration efforts. This chez-tk example is made in that spirit, i.e., the app isn't packaged into a standalone desktop application for other users. The user needs to know how to use Chez Scheme and Akku and needs to install Tcl/Tk and Gnuplot.

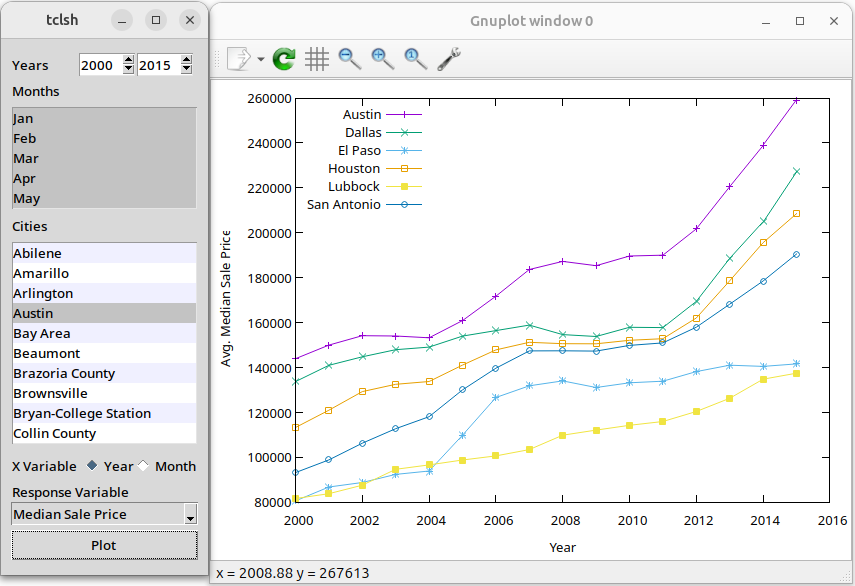

The app allows for filtering on years, months, and cities and summarizes an annual or monthly time series grouped by city for the selected response variable. Each click of the button will generate a plot in a new window.
Data Preparation
Libraries
All of the libraries in the import statement below are available through Akku. dataframe is used for data manipulation. Only one procedure is imported from wax irregex to process a string that is returned from Tcl/Tk. gnuplot-pipe is used for plotting. chez-tk allows us to build a user interface. [All of the code is available in a single file in this gist.]
(import (dataframe)
(only (wak irregex) irregex-split)
(prefix (gnuplot-pipe) gp:)
(chez-tk))
Data
We are using the Texas housing dataset included as part of the ggplot2 package for R. I've written that dataset to a CSV file for use in this post.
> (define df (csv->dataframe "txhousing.csv"))
> (dataframe-display df)
dim: 8602 rows x 9 cols
city year month sales volume median listings inventory date
<str> <num> <num> <num> <num> <num> <num> <num> <num>
Abilene 2000. 1. 72. 5.380E+6 71400. 701. 6.3000 2000.0000
Abilene 2000. 2. 98. 6.505E+6 58700. 746. 6.6000 2000.0833
Abilene 2000. 3. 130. 9.285E+6 58100. 784. 6.8000 2000.1667
Abilene 2000. 4. 98. 9.730E+6 68600. 785. 6.9000 2000.2500
Abilene 2000. 5. 141. 1.059E+7 67300. 794. 6.8000 2000.3333
Abilene 2000. 6. 156. 1.391E+7 66900. 780. 6.6000 2000.4167
Abilene 2000. 7. 152. 1.264E+7 73500. 742. 6.2000 2000.5000
Abilene 2000. 8. 131. 1.071E+7 75000. 765. 6.4000 2000.5833
Abilene 2000. 9. 104. 7.615E+6 64500. 771. 6.5000 2000.6667
Abilene 2000. 10. 101. 7.040E+6 59300. 764. 6.6000 2000.7500
Global Variables
We define global variables based on df for use in the app. First, though, we need to define a helper procedure to double quote any strings in a list that have spaces because chez-tk appends those strings into one big string for passing to Tcl/Tk. Ideally, chez-tk would handle this for us, but, for now, I'm reluctant to make too many changes to chez-tk (see above).
We get the list of cities from the dataframe and remove duplicates. For some reason, there is a problem with three of the cities causing the app to crash with a message about "invalid listvar values." I have no idea why just those three cities cause a problem, but, for now, I've decided not to try to chase down that problem. The other thing to point out is that the options for the combobox are defined as a single string in vars-labs, which also shows the double quoting requirement. When a response variable is selected in the app, the column name is looked up using the associations in vars.
(define (double-quote lst)
(map (lambda (x)
(let ([x-list (string->list x)])
(if (member #\space x-list)
(string-append "\"" x "\"")
x)))
lst))
(define cities (remove-duplicates ($ df 'city)))
(define cities
(filter
(lambda (x) (not (member x '("Montgomery County"
"Port Arthur"
"Wichita Falls"))))
cities))
(define cities-dq (double-quote cities))
(define min-yr (apply min ($ df 'year)))
(define max-yr (apply max ($ df 'year)))
(define months '(Jan Feb Mar Apr May Jun
Jul Aug Sep Oct Nov Dec))
(define vars '(("Median Sale Price" median)
("Sales" sales)
("Volume" volume)
("Listings" listings)
("Inventory" inventory)))
(define vars-labs "\"Median Sale Price\" Sales Volume Listings Inventory")
Filter
We create a small wrapper procedure around a standard dataframe-filter*. The month column in df is represented by numeric months. If we add one to the indices of the selected months, then we get the numeric months for use in the filter. We use the cities indices to get the city names from cities (not cities-dq). We remove all rows with missing values in resp-var with dataframe-remove-na. If there were missing values in year, month, and city columns, then we would need to add them to the dataframe-remove-na.
(define (filter-data df min-yr max-yr months-idx cities-idx cities resp-var)
(let ([months-sel (map add1 months-idx)]
[cities-sel (map (lambda (x) (list-ref cities x)) cities-idx)])
(-> df
(dataframe-remove-na resp-var)
(dataframe-filter*
(city year month)
(and (>= year min-yr)
(<= year max-yr)
(member month months-sel)
(member city cities-sel))))))
Aggregate
As with filtering, we are wrapping dataframe-aggregate. In this case, though, we can't use the macro version (indicated with a trailing *). The macro versions of the dataframe verbs are intended for interactive use and provide simpler syntax. The grouping variables are city and xvar. The new column is named mean-rv where 'rv' stands for response variable. (list (list resp-var)) provides the names of the columns used in the lambda expressions (one sub-list for each expression).
(define (agg-data df xvar resp-var)
(dataframe-aggregate
df
(list 'city xvar)
'(mean-rv)
(list (list resp-var))
(lambda (resp-var) (exact->inexact (mean resp-var)))))
Plot
gp:send sends commands to Gnuplot as strings. When setting the axis labels, we need to surround the label with single quotation marks to distinguish the label from the rest of the command string. To plot multiple sets of data, gp:plot accepts a list where the first item is a string with optional properties (e.g., title provides a label for the legend), the second is a list with x-coordinates, and the third is a list with y-coordinates.
(define (plot-data df x y xvar-str resp-var-str)
(gp:call/gnuplot
(gp:send "set key top left")
(gp:send (string-append "set xlabel \'" xvar-str "\'"))
(gp:send (string-append "set ylabel \'Avg. " resp-var-str "\'"))
(gp:send "set style data linespoints")
(gp:plot
(map (lambda (c)
(let ([df-sub (dataframe-filter*
df
(city)
(string=? c city))])
(list
(string-append "title '" c "'")
($ df-sub x)
($ df-sub y))))
(remove-duplicates ($ df 'city))))))
App Details
Named Frames and Widgets
Tile provides reimplementations of many classic widgets in the ttk namespace. In the first line in the code block below, we opt to use the Tile versions over the classic versions for all widgets with ttk-map-widgets. tk-start initializes the Tk shell.
In chez-tk, widgets are represented as procedures that can be used to configure the widget. In this app, we use frames, labels, spinboxes, listboxes, radiobuttons, a combobox, and a button, but only a few of them require names for subsequent configuration. The named procedures also specify the relationship of the frames and widgets, e.g., tk creates frame and frame creates months-lb, cities-lb, vars-cb, and all other widgets.
Commands are represented as symbols (e.g., 'create-widget) whereas parameters are represented as symbols with trailing colons (e.g., 'height:). Scheme symbols can be used in place of strings and Scheme values such as #f are converted to the Tcl/Tk equivalent. tk-var associates a Tk variable name with a widget.
When 'exportselection: is set to #t, clicking outside of the listbox deselects any listbox selections. For multiple selections in listboxes, the 'selectmode: needs to be set to 'multiple or 'extended.
If the selection mode is multiple or extended, any number of elements may be selected at once, including discontiguous ranges. In multiple mode, clicking button 1 on an element toggles its selection state without affecting any other elements. In extended mode, pressing button 1 on an element selects it, deselects everything else, and sets the anchor to the element under the mouse; dragging the mouse with button 1 down extends the selection to include all the elements between the anchor and the element under the mouse, inclusive.
(ttk-map-widgets 'all)
(define tk (tk-start))
(define frame (tk 'create-widget 'frame 'padding: '(10 10 10 10)))
(define months-lb
(frame 'create-widget 'listbox 'listvariable: (tk-var 'months-tk)
'height: 5 'exportselection: #f 'selectmode: 'extended))
(define cities-lb
(frame 'create-widget 'listbox 'listvariable: (tk-var 'cities-tk)
'height: 10 'exportselection: #f 'selectmode: 'extended))
(define vars-cb
(frame 'create-widget 'combobox 'values: vars-labs 'state: 'readonly))
App Layout
We are using the grid geometry manager with a simple layout of three columns and nine rows all contained in a single frame. Widgets are sized to the content so a long label like Response Variable should be set to span multiple columns to prevent undesirable extra space. The 'sticky: parameter uses cardinal directions ('nwes) for alignment of widgets. Most widgets can be created within a call to tk/grid because there is no subsequent configuration of those widgets, just setting and getting the Tk variable.
(tk/grid frame)
(tk/grid (frame 'create-widget 'label 'text: "Years")
'column: 0 'row: 0 'sticky: 'w 'pady: 5)
(tk/grid (frame 'create-widget 'spinbox 'from: min-yr 'to: max-yr
'textvariable: (tk-var 'min-yr-tk) 'width: 5)
'column: 1 'row: 0 'sticky: 'w)
(tk/grid (frame 'create-widget 'spinbox 'from: min-yr 'to: max-yr
'textvariable: (tk-var 'max-yr-tk) 'width: 5)
'column: 2 'row: 0 'sticky: 'w)
(tk/grid (frame 'create-widget 'label 'text: "Months")
'column: 0 'row: 1 'sticky: 'w)
(tk/grid months-lb 'column: 0 'row: 2 'columnspan: 3 'sticky: 'we 'pady: 5)
(tk/grid (frame 'create-widget 'label 'text: "Cities")
'column: 0 'row: 3 'sticky: 'w)
(tk/grid cities-lb 'column: 0 'row: 4 'columnspan: 3 'sticky: 'we 'pady: 5)
(tk/grid (frame 'create-widget 'label 'text: "X Variable")
'column: 0 'row: 5 'sticky: 'w 'pady: 5)
(tk/grid (frame 'create-widget 'radiobutton 'text: "Year" 'value: "Year"
'variable: (tk-var 'xvar-tk))
'column: 1 'row: 5 'sticky: 'e)
(tk/grid (frame 'create-widget 'radiobutton 'text: "Month" 'value: "Month"
'variable: (tk-var 'xvar-tk))
'column: 2 'row: 5 'sticky: 'e)
(tk/grid (frame 'create-widget 'label 'text: "Response Variable")
'column: 0 'row: 6 'columnspan: 3 'sticky: 'w)
(tk/grid vars-cb 'column: 0 'row: 7 'columnspan: 3 'sticky: 'we)
Commands
In this app, we only have one command, plot-cmd, which filters, aggregates, and plots data. plot-cmd is associated with the plot button via the 'command: parameter. A command procedure takes no arguments. Within plot-cmd, we retrieve the state of all of the app widgets at the time that the button was clicked and then pass those values to the procedures that we described above, i.e., filter-data, agg-data, and plot-data.
For several widgets, we use tk-get-var with the Tk variable name to get the current widget value and convert it to the appropriate type. For the combobox, we use the Scheme name (vars-cb) with 'get. Similarly, for listboxes, we use the Scheme name with 'curselection, which returns a string of the selected indices, e.g., "0 3 4 8". prepare-curselection splits that string into a list of numeric indices for use in filter-data.
If the filtering and aggregating steps produce an empty dataframe, then clicking on the plot button has no effect (because otherwise the app would crash). Ideally, the user would receive feedback on why the plot isn't displayed, but, unfortunately, that feature is not a simple addition to the app (based on my current understanding of Tcl/Tk).
(define (prepare-curselection x)
(map string->number (irregex-split " " x)))
(define plot-cmd
(lambda ()
(let* ([xvar-str (tk-get-var 'xvar-tk)]
[xvar (if (string=? xvar-str "Year") 'year 'month)]
[rv-str (vars-cb 'get)]
[rv (cadr (assoc rv-str vars))]
[df-sub (filter-data
df
(string->number (tk-get-var 'min-yr-tk))
(string->number (tk-get-var 'max-yr-tk))
(prepare-curselection (months-lb 'curselection))
(prepare-curselection (cities-lb 'curselection))
cities
rv)])
;; can't aggregate empty dataframe
(when (> (car (dataframe-dim df-sub)) 0)
(plot-data (agg-data df-sub xvar rv) xvar 'mean-rv xvar-str rv-str)))))
(tk/grid (frame 'create-widget 'button 'text: "Plot" 'command: plot-cmd)
'column: 0 'row: 8 'columnspan: 3 'sticky: 'we 'pady: 5)
Initial Values
For spinboxes and radiobuttons, tk-set-var! sets the initial value. For the combobox, the initial value is set with the Scheme name, vars-cb, and 'set. For listboxes, tk-set-var! sets the options, but the initial values are set with the Scheme name. Here is the Tcl/Tk documentation for listbox selection set:
pathName selection set first ?last?
Selects all of the elements in the range between first and last, inclusive, without affecting the selection state of elements outside that range.
This nicely illustrates the translation between Tk and chez-tk where the Scheme name is used in place of the pathName and the rest of the expression is almost identical. For months-lb, we initially select all months. For cities-lb, we are selecting multiple elements that are not part of an inclusive range so we set the selected values iteratively. We use a helper procedure, get-idx, to get indices for a subset of the cities.
(tk-set-var! 'min-yr-tk min-yr)
(tk-set-var! 'max-yr-tk max-yr)
(tk-set-var! 'months-tk months)
(tk-set-var! 'cities-tk cities-dq)
(tk-set-var! 'xvar-tk "Year")
(vars-cb 'set "Median Sale Price")
(months-lb 'selection 'set 0 11)
(define (get-idx lst lst-sub)
;; get indices of lst-sub from lst
(let* ([idx (iota (length lst))]
[lst-idx (map (lambda (x i) (cons x i)) lst idx)])
(map (lambda (y) (cdr (assoc y lst-idx))) lst-sub)))
(for-each (lambda (x) (cities-lb 'selection 'set x))
(get-idx cities '("Austin" "Dallas" "El Paso" "Houston"
"Lubbock" "San Antonio")))
Conclusions
I have enjoyed learning the basics of making GUIs with Tk in Scheme and R. I don't mind the outdated look of the widgets and I like the compactness of the interface (compared to a Shiny app). I think it would be fun to make a chez-tk version of my Shiny-Scorekeeper app (or even a tcltk version in R). I'm also interested in the possibility of packaging chez-tk and tcltk apps into standalone executables.
